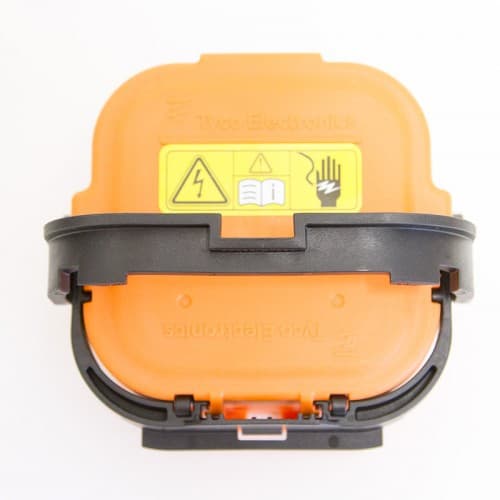

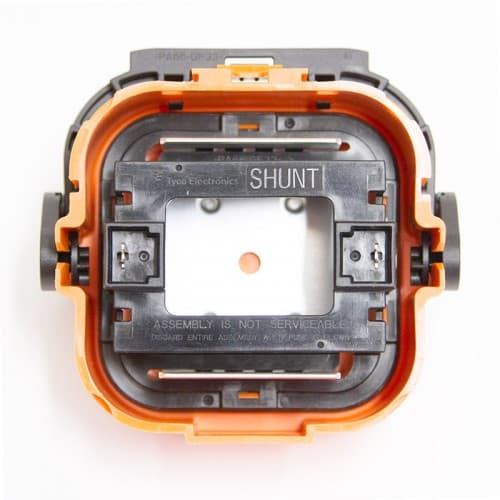

TE MSD Shunt Plug assembly

SKU: FEV-C-0052

MSD (Manual Service Disconnect) shunt plug assembly disconnects the power and makes vehicle safe for maintenance, repair or emergency procedures. AMP+ Manual Service Disconnect shunt plug assembly makes use of a two stage lever to open the HVIL circuit prior to separation of HV contacts. This enables disconnection of internal HV battery pack and protects the battery pack HV cables from short circuiting. The solution is tool-free and all HV conducting surfaces on the receptacle assembly are finger proof and touch safe. The design is scalable and available in different fuse ratings. Use in conjunction with MSD (Manual Service Disconnect) shunt receptacle assembly. Manufactured by Tyco Electronics Corporation. Tyco FEV-C-0040 52 68 Spec.pdf Login to download Non-account holders please complete the following information to access this Technical data file "TE MSD Shunt Plug assembly" Name Email Phone Number Registered Users, Login By creating an account you will be able to access unlimited Technical data downloads, shop faster, be up to date on an order status, and keep track of the orders you have previously made.
